AISTAR dispenser sumps

Item Code: AI5-9332
(785)Write a review
Share this:
Have a question?
Price:
USD
$220.00
    Please select the information you wantX
+
-
Units
Add to Favorite Items
  • Description

FlexWorks™ Dispenser Sumps are installed beneath fuel dispensers to provide access to and secondary containment of dispenser plumbing, emergency shear valves, and underground piping connections. Stabilizer Bar Kits are installed in FlexWorks Dispenser Sumps to provide reliable support for boss-mounted emergency shear valves.
Features & Benefits

Multiple Models – ensure a custom fit.

Structural Reinforcing on Large MPD Models – prevents sump deformation from backfill and high water table forces.

Light Color – preserves rigidity in sunlight before backfill and provides maximum visibility after installation.

Full Perimeter Liquid Collection Channel – facilitates quick leak detection and allows flexibility in locating leak sensors.

Integral Rain Lip – protrudes into the dispenser frame to prevent surface water entry.

Easy Installation – field height adjustment capability and large pipe entry area ensure installation flexibility.

Many Are Available in a Conduitless Model – eliminates conduit entry fittings and prevents a notorious leak point inside dispenser sumps.



Ordering Specifications - One-Piece Polyethylene Dispenser Sumps

Sump
Model #		 A B C D E Weight
in. cm in. cm in. cm in. cm in. cm lbs. kg
DS-1036 14 36 10 25 40 102 36 91 38 97 65 65
DS-1117F** 14.5 37 10.5 27 20.5 52 16.5 42 18.5 47 32 15
DS-1120 15 38 11 28 24 61 20 51 25 64 33 15
DS-1123 15 38 11 28 27 69 23 58 25 64 33 15
DS-1123B 18.5 47 11 28 27 69 23 58 25 64 33 15
DS-1123F** 15 38 11 28 27 69 23 58 25 64 33 15
DS-1229 15.5 39 11.5 29 33 84 29 74 31 79 49 22
DS-1242 15.5 38 11.5 29 46 117 42 107 44 112 84 38
DS-1543A 19 48 15 38 43 109 39 99 41 104 84 38
DS-1630 20 51 16 41 34 86 30 76 32 81 52 23
DS-1630B 20 51 16 41 34 86 30 76 32 81 52 23
DS-1642 20 51 16 41 46 117 42 107 44 112 84 38
DS-1836 21.5 55 17.5 44 40.5 103 36.5 93 39 99 70 32
DS-1928 18 46 14.8 38 30 76 26 66 28.5 72 50 23
DS-1741 21 53 17 43 44.7 114 40.6 103 42.6 108 80 36

* Refer to FlexWorks Dispenser Sump Selection Charts below to select sumps for particular dispensers.
** Flush mount model supplied without rain lip due to dispenser frame clearance limitations; Frame gasket included. Anchor bolts provided, Stabilizer Bar Kits ordered separately; One kit required for each emergency and vapor shear valve.

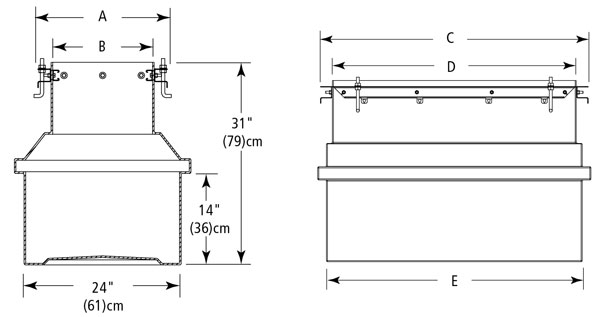

Dimensions

FlexWorks Dispenser Sump Selection Guide

Gilbarco

Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
Gilbarco in. cm
Commercial 625, 650, 684 Series
(21" / 53 cm Frame)		 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
Salesmaker-2 Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
Highline 11B Series
(21" / 53 cm Frame)		 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F     DSF-1117F SBK-1100J
Highline 111B Series
(27" / 69 cm Frame)		 15-11/16" x 27" 40 x 53 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Trimline 251, 252, 261, 262
(27" / 69 cm Frame)		 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Trimline 154, 164, 251, 262
(27" / 69 cm Frame)		 15-11/16" x 21" 40 x 69 DS-1117F DSW-1117F     DSF-1117F SBK-1100J
Commercial 650 Series
(27" / 69 cm Frame)		 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Highline Salesmaker Series 15-11/16" x 21" 40 x 69 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
Highline Salesmaker Series
(27" / 69 cm Frame)		 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Salesmaker-4 Series
(27" / 69 cm Frame)		 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Legacy Series 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
Encore Series 23-1/2" x 40-9/16" 60 x 103 DS-1836 DSW-1836
DSW-1836CL		 DP-1836 FDS-4021 DSF-1836
DSF-1836C		 SBK-1800*
Advantage
(36" / 91 cm Frame Models)		 21-1/2" x 36" 55 x 91 DS-1630 DSW-1630 DP-1630   DSF-1630 SBK-1600
Quad or Dual
Blender X + O
(36" / 91 cm)
Advantage
(48" / 122 cm Frame Models)		 21-1/2" x 48" 55 x 122 DS-1642 DSW-1642     DSF-1642 SBK-1600*
Blender Six-Hose
Blender Single-Hose
Blender X + O (48" / 122 cm)
or X + 1 (48" / 122 cm)
MPD-1, MPD-2, MPD-3 16" x 48" 41 x 122 DS-1036         SBK-1000J
MPD Fixed Blender 16" x 48" 41 x 122 DS-1036         SBK-1000J

* For FDS-4721 Models, use Stabilizer Bar SBO-0300.

Bennett

Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
Bennett in. cm
Bennett Pacific 19-1/2" x 43-1/2" 49 x 110 DS-1543A         SBK-1500
Bennett 3000 Series 20" x 30" 51 x 76 DS-1123B         SBK-1100J

PD McLaren

Customer Reviews
Average rating:

5(based on 785 reviews)

Share your thoughts with other customers

Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
PD McLaren in. cm
RDR HSx (Single Product, Single Hose) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
RDR HSx-D1 (Single Product, Dual Hose) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922
