  • Description

Specifications

Tatsuno combination pump is a kind of gear type pump.it can be applied with gasoline, kerosene and mixed fuel.


Product Description





Tatsuno combination pump is a kind of gear type pump.it can be applied with gasoline, kerosene and mixed fuel. This product combination pump and air separator , it has advantages as small volume,compact structure ,long working life,low noise, strong separating capability etc.



Technical performance
installation size 318*202*202mm
collocate motor 0.75Kw
speed 680rpm-980rpm
flow rated

45L/min-90L/min

dry degree of vacuum

≥0.054Mpa

noise level

≤72dB

output pressure 0.18Mpa-0.35Mpa


Tatsuno pump is a kind of gear type pump.it can be applied with gasoline, kerosene and mixed fuel. This product combination pump and air separator , it has advantages as small volume,compact structure ,long working life,low noise, strong separating capability etc.

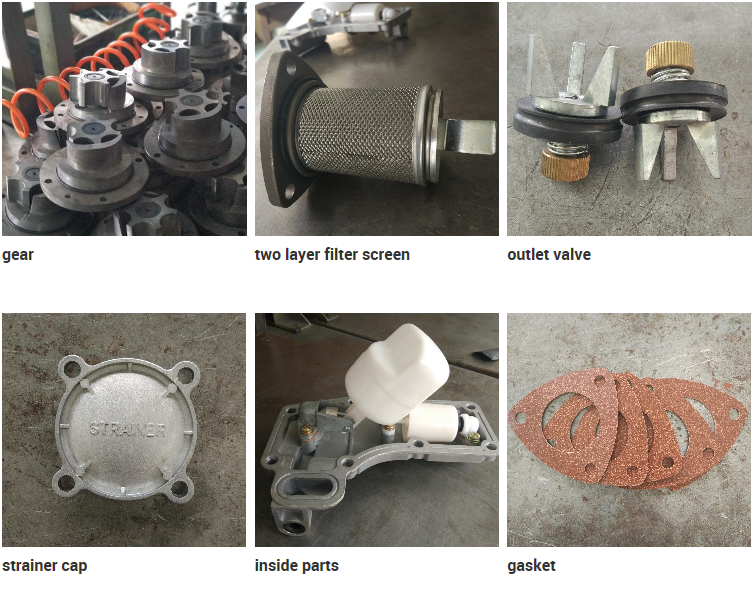

Tatsuno fuel dispenser pump, whose material of bady is alloy aluminum founded under low pressure, is applicable to gasoline, kerosene , diesel oil and compound of them, Air separator, by pass valve, check valve, inlet and outlet strainer, relief valve are built in.

Tatsuno pump applies to form a complete set. Also applying to transport othermixed liquids of gas and liquid. It can separate gasoline, coal oil, diesel oil, etc. oils from air, thispump collects suction, separation function together. It has the features as follows: reasonabledesign, compact structure, low noise, long service life, with aluminum alloy shell, and beautiful mold.


Product Application
advantage:
(1) High-precision measurement
Even at low flow volumes, fluctuations are kept to an absolute minimum, enabling stable, high-precision measurements.
(2) Excellent durability
No contact between rotors results in less wear and excellent durability.
(3) Compact design with high-speed dispensing
Due to the high rotation speed of the uniform-speed measurement rotors, the measurement amount of one revolution is small and the overall size is compact.
