Description

The DC oil pump has been tested and passed through a strict performance test for temperature
resistance and antihock with a high quality protection rating of IP55.
Car batteries may be used to power the pump for fast and convenient fuel pumping.
It may be also used with a fueling nozzle and filters for ensuring the flow of clean diesel or kerosene fuel.
This pump is designed for all kinds of machinery, tractor and farm equipment.

Specification:
It is an ideal portable pump for diesel and kerosene etc.
Our oil pump is through the strict aseismatic anti-scar performance tests.
IP standard is IP55, with inner by-pass valve,with excellent quality. It works
With various battery and has the feature of self-priming function.
Pump is only working with diesel oil and oil with similar specs. It's strictly
Prohibited for gasoline and low flash point mediums.
Pump casing and impeller is made of cast iron.

Note: Not suitable for low-ignition fuel (such as gasoline, liquefied petroleum gas, alcohol, etc.) transmission.

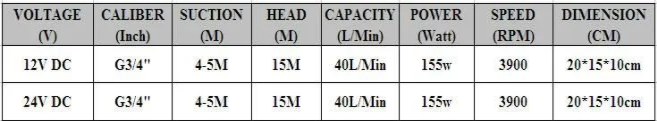

Technical Data:

Failure and Resolution:

Trouble	Reasons	Trestments
No oil output at first	1.(+)(-)reversed	1.(+)(-)correctly attached
	2.oil pipeline leaks	2.Connect the oil pipe and lock the pipe
	3.No oil before the pump start	3.add a little oil pumped
Little oil transferred	1.low supply voltage	1.Increase the supply voltage,but not exceed the voltage tolerance
	2.excessive suking and head	2.Adjusting the sucking and the lift ranges
	3.eyewinker obstrouction in the oil filter	3,clear foreign body
	4.Vane wore	4,replace the vane

This pump is smart pump, and designed the switch on the hand, and with yellow
outside shell protection! And dirty oil viewer.

For fueling diesel oil, kerosene, not for gasoline.
Induction motor with aluminum casing, IP54
Self priming: Yes
Cast iron casing, rotary vane pump, steel rotor.
Bypass valve built in.
Built in filter, easily accessible for cleaning.
Continuous working principle
Applicable in transferring oil from barrels, fueling machines in construction sites, boat, agriculture.

Place of Origin:Hebei, China (Mainland)
Model Number:12v/24v
Structure:Single-stage Pump
Usage:diesel/water
Application:Transfer
Power:84W/168W
Fuel:Electronic
Pressure:Low Pressure
Standard or Nonstandard:Standard
Theory:Electronic pump
voltage:24V/12V
no-load speed:4200r/min
rated speed:3200r/min
rated curret:12A/6.5A
RATED TORQUE:200W
12v Diesel Fuel Transfer Pump Diesel Fuel Pump

Product Description

Available in 12 and 24 Voltage versions, provide with 3/4” threaded connectors on the pump body. Switch box and fuse carrier, reinforced base complete with power cables and pincers for connection to terminal strips.
Cast iron pump body finished with anti-corrosion paint
Vane pump with sintered steel rotor and acetal resin vane
By-pass valve, pressure control valve and overload protector incorporated in the pump body
Direct current brush motor with permanent magnet stator
Motor protection class IP55
Used in intermittent service with 30-minute work cycles
Pump attachment support bracket

Voltage:	DC12V/24V
Rated Power:	0.21HP/155W
Rated Current:	13 amps
Speed Range:	3000rpm
Pump Flow Rate:	Up to 33 (L/Min)
Pump Weight:	8 lbs 3.7 oz
Max Suction:	3m
Lift Distance:	6m
Absorbing Distance:	3m
Max Lift:	6m
Rated Torqueuction:	200w
No-load Speed	4200rpm
Inlet/ Outlet port fitting:	3/4"
Relief Valve:	Yes
Compatibility:	Diesel,Biodiesel, and Kerosene only.

It is indispensable wherever diesel oil must be transferred or handled from drums and tanks. It is also suitable for bio diesel, Kerosene and vegetable oil. It is applicable to be in farms, construction sites, oil , field-working vehicles, industries and private home.

This pump should not be used for petrol, flammable or low flash point liquids

Features

Self-priming, rotary electric vane pumps for the transfer of diesel fuel equipped with by-pass valve
Pump Body: Cast-iron (Treated against corrosion and paint-finished)
Low power consumption
Liquid temperature: Up to 35°C
Dry-running of pump shall be prohibited
Compact size - easy to install, operation and maintenance
