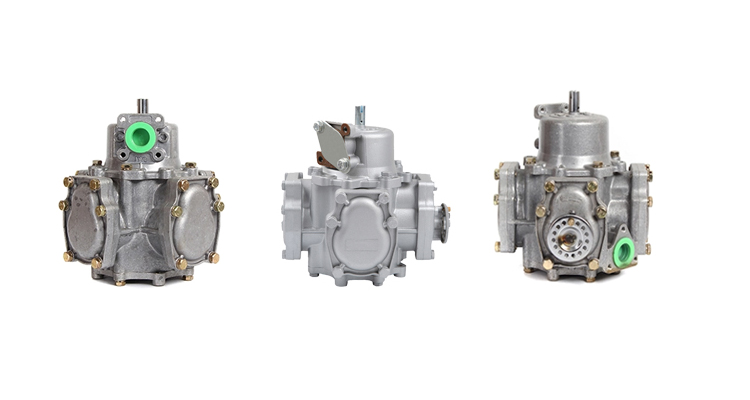

Tatsuno flow meter with pulser
Features & Benefits:
1.Novel appearance, small body, excellent abrasion resistance, accurate measurement and long life & reliable service
2.Discharge port is directly above calibration dial
3.Body: Aluminum Alloy
4.Construction: Stainless steel cylinder bushing
5.4 piston positive displacement.
6.Plastic swivel ball and pin on shaft
Delivery capacity per revolution |
0.473L |
Minimum adjustable quantity |
± 0.04% |
Accuracy with the flow range |
±0.2% |
Repeatable variation |
±0.1% |
Net weight |
6.5kg/pc |
Gross weight |
6.8kg/pc |
Dimension |
303mm*265mm*305mm |
